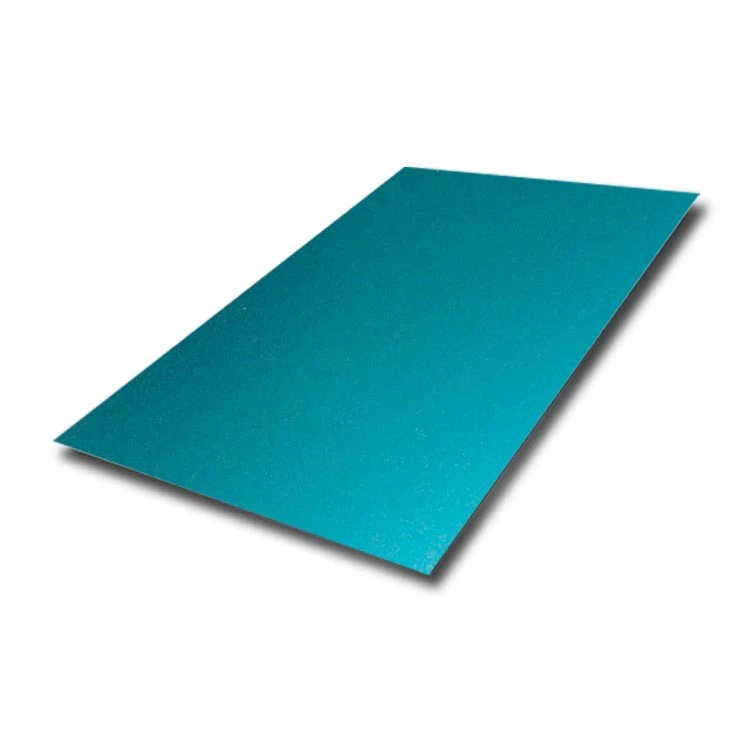

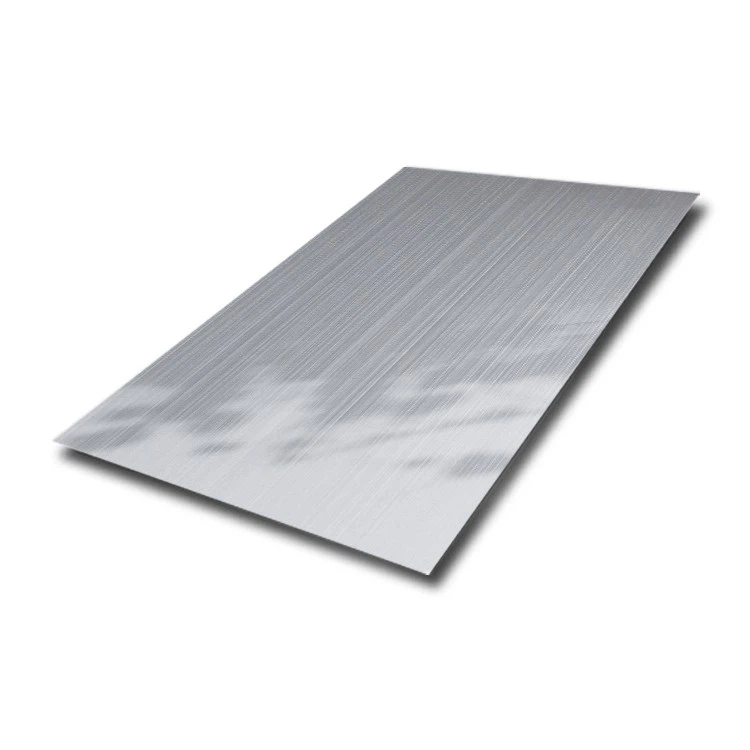

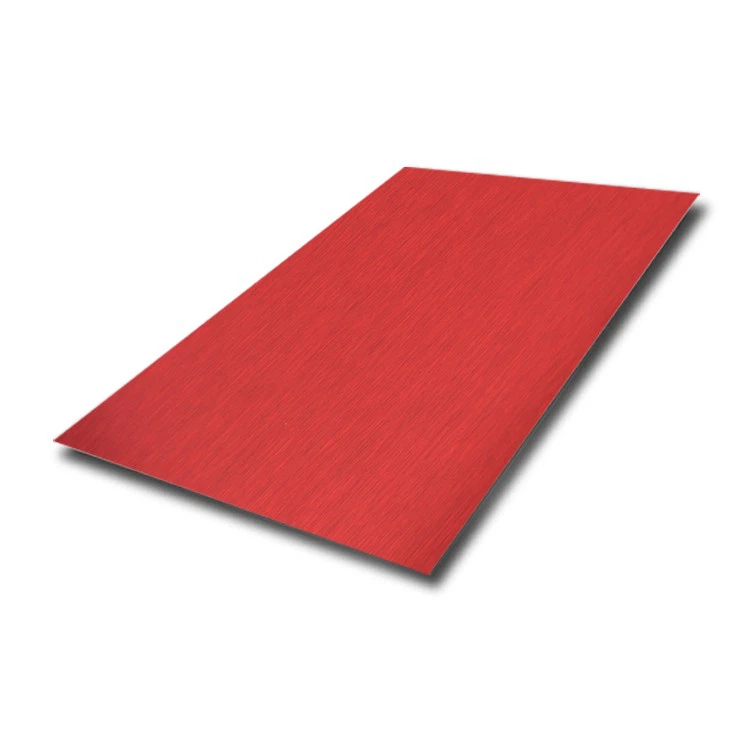

PVD Stainless Steel Sheet
PVD Stainless Steel Sheet is a premium decorative surface finished by Physical Vapor Deposition, engineered for high-end architectural and commercial interiors.
Features
Excellent Formability
Withstands standard bending (min. bend radius ≥1.5T), laser cutting, and edge polishing without coating delamination or cracking.
Surface Durability
Vacuum-bonded ceramic-metallic layer resists UV exposure, cleaning chemicals, and abrasion (≥1500 HV hardness).
Color Consistency
20+ finishes-including gold, black, and rose gold-maintain uniform appearance across large project orders.
Technical Specifications
|
Property |
Industrial Grade |
Architectural Elite |
|
Base Material |
304/316L/430 |
904L/Duplex 2205 |
|
Coating Thickness |
1.5-3.0μm |
0.8-5.0μm (gradient) |
|
Adhesion Strength |
Class 0 (ISO 2409) |
100MPa (ASTM D4541) |
|
Color Options |
15 Standard |
200+ RAL Custom |
|
Surface Hardness |
1500 HV |
3500 HV (DLC Hybrid) |
|
Thermal Stability |
400°C |
800°C |
|
Certifications |
RoHS, REACH, ISO 9001 |
Cradle-to-Cradle Gold |
Applications
Elevator Interiors
Cabins, doors, control panels
Architectural Wall Cladding
Hotel lobbies, corporate receptions, luxury retail
Commercial Fixtures
Countertops, bar fronts, display stands
Signage & Branding
Logos, directional signs
Furniture & Partitions
Office dividers, table edges
Why Choose Us
Digital Color Matching
- Pantone/RAL live verification
- AR color visualization tool
Nano-Engineered Protection
- Self-healing scratch resistance
- Permanent hydrophobic effect (115° contact angle)
Global Compliance
- EU CPR Class A1 fire rating
- FDA 21 CFR compliance
- Seismic Zone 4 certification
Project Support
- Full-scale color mockups in 72hrs
- On-site coating repair training
- BIM libraries with weathering data
fAQ
Can this be used outdoors?
Only in fully sheltered areas (e.g., covered entryways, soffits). Not suitable for direct rain, snow, or prolonged UV exposure.
Can I bend or weld it after PVD coating?
Bending is OK (min. radius = 2× thickness). Welding possible with argon back-purge-but avoid grinding or sanding the coated surface.
What's the MOQ for custom RAL colors?
5 sheets for custom colors; 1 sheet for standard finishes. Lab dip sample in 7 days.
Do you provide on-site repair solutions?
Yes-for large projects, we supply touch-up pens and matching polish kits to handle minor scratches during installation.
How do you ensure color match across multiple shipments?
Every batch includes a signed approval sample and spectrometer printout. We hold master standards for all 15 core colors.
